Please submit completed application form, with relevant supporting documents to: But how do we demodulate an fm signal? Demodulation of fm wave using frequency discriminator. • uses two tuned circuits each set to a. One of the diodes has been reversed.
KnowCrazy.com: 04/21/11 from 4.bp.blogspot.com Slope detector can be constructed with the help of a tuned amplifier and an envelope detector. It is exactly opposite to that of frequency modulation. Direct method of fm generation. The low pass rc filter of the detector is not purely band limited so it introduces distortions. The primary winding of the input transformer t is tuned to the central frequency of the carrier signal fc by using the tuning. The slope detector fm demodulation does not really satisfy any of the conditions laid down in the introduction. One of the diodes has been reversed. Hi viewers, in this video, i have explained the frequency demodulation methods such as frequency discriminator (simple slope detector) and balanced slope detector.
It is in the variation of the instantaneous frequency of the carrier, either above or below the center frequency.
One of the diodes has been reversed. So the distortions occur due to non linear characteristics of the detector at higher deviations in frequency. There are far more efficient methods that can be used for fm detection / demodulation. This lecture covers the balanced slope detector technique for demodulation of fm signal. • fm slope detection is a concept that can used be recover the modulation from an fm signal, but it is not widely used. The following diagram shows a simplified slope detector circuit. Slope detection is the very simplest form of frequency modulation, fm demodulation. The image shows a simple fm demodulator according to the principle of slope detector. 2.2 fm demodulation using slope detection. Hi viewers, in this video, i have explained the frequency demodulation methods such as frequency discriminator (simple slope detector) and balanced slope detector. How to demodulate an fm waveform. It is in the variation of the instantaneous frequency of the carrier, either above or below the center frequency. The traditional fm demodulator using a resonant circuit.

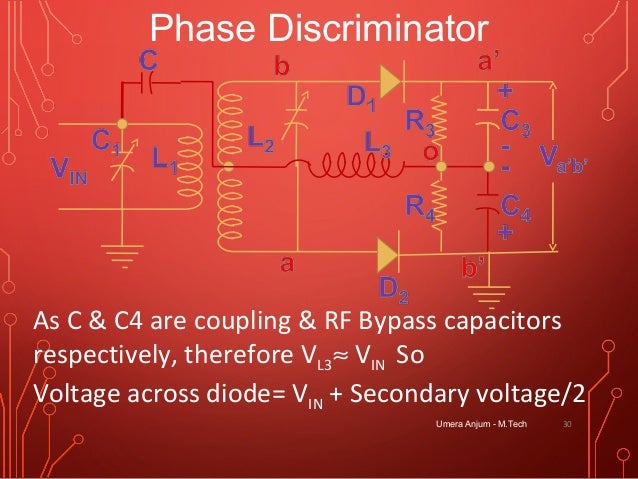

Demodulation of fm is done by frequency discrimination method and phase discrimination method. Slope detector can be constructed with the help of a tuned amplifier and an envelope detector. One of the diodes has been reversed. Для просмотра онлайн кликните на видео ⤵. Several types of fm detectors have been developed and are in use, but in this the slope detector is essentially a tank circuit which is tuned to a frequency either slightly above or.
Operation Of Diode Detector Circuit from i0.wp.com The image shows a simple fm demodulator according to the principle of slope detector. Algorithms for digital fm demodulation. Circuit to produce a phase shift of 90 degrees at. Drawbacks of balanced slope detector for free materials of different engineering subjects use my android application named engineering funda with following link: The following diagram shows a simplified slope detector circuit. Several types of fm detectors have been developed and are in use, but in this the slope detector is essentially a tank circuit which is tuned to a frequency either slightly above or. The primary winding of the input transformer t is tuned to the central frequency of the carrier signal fc by using the tuning. How to demodulate an fm waveform.
The slope detector fm demodulation does not really satisfy any of the conditions laid down in the introduction.
Fm slope detection is a concept that can used be recover the modulation from an fm signal, but it is not widely used. The frequency of vout is locked (synchronized) to the input frequency Posted on january 12, 2017january 12, 2017 by retevis. If you continue browsing the site, you agree to the use of cookies on this website. The slope detector fm demodulation does not really satisfy any of the conditions laid down in the introduction. Demodulation of fm | slope detector. • uses two tuned circuits each set to a. Slideshare uses cookies to improve functionality and performance, and to provide you with relevant advertising. 2.2 fm demodulation using slope detection. Demodulation of fm is done by frequency discrimination method and phase discrimination method. Fm demodulation using monostable multivibrator. Direct method of fm generation. Demodulation of fm is done by frequency discrimination method and phase discrimination method.

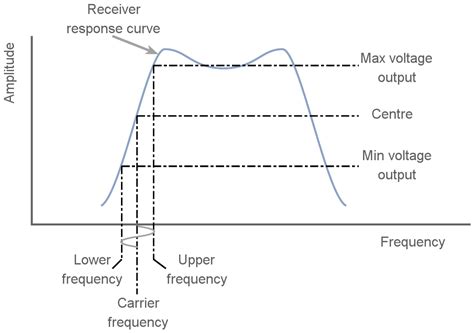

As the name suggests frequency modulation, fm uses changes in frequency to carry the sound or slope fm detector: Slope detection is the very simplest form of frequency modulation, fm demodulation. Для просмотра онлайн кликните на видео ⤵. An fm slope detector consists of a tuned circuit where the centre frequency is tuned to a frequency slightly offset from the carrier of the signal. Algorithms for digital fm demodulation.
FM Detectors Analog Devices Wiki from wiki.analog.com Algorithms for digital fm demodulation. However as a concept it is useful to understand. Fm demodulation, frequency discrimination by simple slope detector in analog communication подробнее. Hi guys in this lecture fm demodulation: Slope detector can be constructed with the help of a tuned amplifier and an envelope detector. Slope detector can be constructed with the help of a tuned amplifier and an envelope detector. It is a detection technique of a received modulated signal. Simple slope & balanced slope detection (frequency discriminator) are explained.
The frequency of vout is locked (synchronized) to the input frequency
This form of detector uses the slope of a tuned circuit to convert the frequency. In fm demodulators, the intelligence to be recovered is not in amplitude variations; However as a concept it is useful to understand. This lecture covers the balanced slope detector technique for demodulation of fm signal. Slideshare uses cookies to improve functionality and performance, and to provide you with relevant advertising. Demodulation of fm is done by frequency discrimination method and phase discrimination method. It is exactly opposite to that of frequency modulation. Hi viewers, in this video, i have explained the frequency demodulation methods such as frequency discriminator (simple slope detector) and balanced slope detector. How to demodulate an fm waveform. The fm slope detector relies on the signal entering the input terminals (on the left) to be current in nature. For spectrum analyzers without the dedicated fm demodulation capability, we can use the slope detector method to do so. Simple slope & balanced slope detection (frequency discriminator) are explained. Use the chrome™ browser to best experience multisim live.
